Built-In Web Server

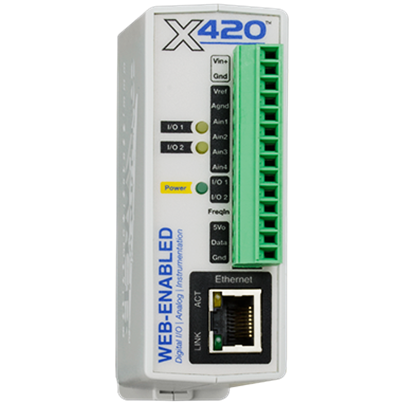

The X-420 has a built-in web server, allowing it to be configured, controlled and monitored through a standard web browser or our smartphone app.

Built-in I/O

4 Analog Inputs (Multi-Function)

±1.28V, ±2.56V, ±5.12V, ±10.24V, 4-20mA

Configurable for single-ended, differential or 4-20mA (0-20mA) input operation. Monitor industrial sensors, wind direction sensors, pyranometers, pressure transducers and much more.

Up to 16 Temperature/Humidity Sensors

1-Wire Sensor

Monitor up to 16 1-Wire sensors, including temperature and humidity sensors.

2 Digital I/O

Configurable as inputs or outputs | 0-5VDC

Inputs: Monitor dry contacts such as push buttons, magnetic door alarm switches, micro-switches and more.

Outputs: Provides a digital logic signal that can be connected to a solid-state relay to control motors, pumps, lights and other equipment.

1 Frequency Input

AC coupled frequency input

Monitor frequency inputs such as magnetic wind speed sensors, transformers and other compatible devices.

Peer-to-Peer Communication (P2P)

Monitor and Control up to 100 I/O

The X-420 supports peer-to-peer communication between ControlByWeb modules. It can communicate with up to 32 modules and allows you to monitor and control up to 100 I/O points.

The X-420 can communicate with all ControlByWeb devices*. It also provides instantaneous messaging between X-400 Series products, allowing the X-420 to monitor and control I/O on other X-400 Series products as though they were directly connected to the module.

Control/Logic

Task Builder

The X-420’s built-in interface allows you to create custom “Tasks” for simple or advanced control logic.

Easily create tasks based on the status of inputs or outputs. Each task can include up to three actions, providing a flexible monitoring and control solution for your application.

Create up to 50 Scheduled, 50 Conditional, and 20 Override Schedules.
