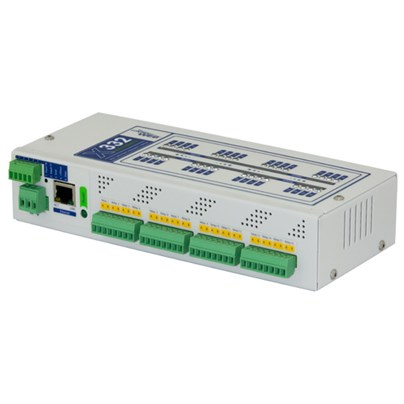

X-332 Web-Enabled Advanced I/O Controller

X-332 Web-Enabled Advanced I/O Controller

The X-332™ is a robust, full-featured web-enabled Ethernet I/O module designed for reliable remote control and monitoring. It features 16 relays, 16 optically-isolated digital inputs, 2 counter inputs, 4 analogue inputs, support for up to four temperature and/or humidity sensors, and the ability to remotely control relays on other ControlByWeb devices.

The X-332™ also includes a range of advanced features, including a full calendar scheduler, BASIC script interpreter, data logging, and a real-time clock with NTP synchronisation.

The built-in web server allows relays and inputs to be controlled and monitored through a standard web browser or the CBW Mobile smartphone app. Temperature and humidity readings can also be displayed as graphs directly through any HTML5-compatible web browser.

Email alerts can be configured to respond to relay and/or input states, as well as temperature and humidity thresholds.

Additional advanced features include the ability to initiate connections to remote servers, BASIC programming, SNMP, peer-to-peer communications, internal monitoring and more.


Quantity:


Applications

The X-332™ is suitable for a wide range of applications, including security systems, lighting control, remote control, shift bell controllers and much more.

Setup

The X-332™ can be accessed and configured through its web-based user interface. No software is required, there is no subscription to purchase, and no programming is necessary for setup or everyday use.

  • 16 electro-mechanical relays (2 Amp contacts)
  • 16 optically-isolated digital inputs
  • Two, scalable-counter inputs (Inputs 17 & 18)
  • Four analog inputs
  • One-wire bus for up to 4 temperature and/or humidity sensors
  • Control up to 16 relays on other ControlByWeb devices
  • Monitor and log power supply (voltage)
  • Highly configurable – almost any combination of input/relay control possible
  • Real-Time Clock with NTP server synchronization
  • Automatic daylight savings and leap year adjustment
  • Full calendar scheduling with 100 programmable events
  • Email alerts based on user-defined conditions
  • Built-in web server – No software required
  • Customizable web-based control page
  • BASIC script support for advanced flexibility
  • Configurable logging
  • Graphing (logged data)
  • Static or DHCP IP address configuration
  • XML, Modbus/TCP, and SNMP interface options
  • Field updatable
  • Removable terminal connector for easy installation
  • Rugged DIN-Rail/wall-mountable enclosure
