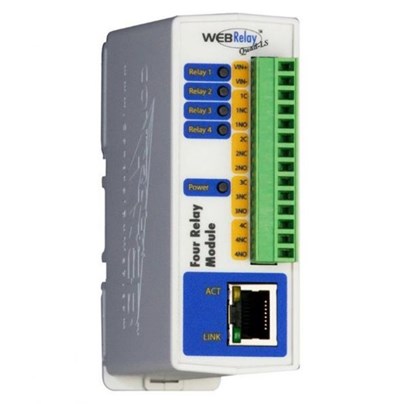

WebRelay-Quad

WebRelay-Quad

For a wide range of applications, WebRelay-Quad™ provides a fast, straightforward and reliable way to remotely control equipment across an IP network, including over the Internet.

WebRelay-Quad™ is used across many industries for applications such as industrial control, security, remote control, remote reset and other systems requiring dependable remote relay operation.

The unit features four low-signal relays, each capable of switching up to 1 Amp at 28V. Each relay can be individually switched on or off, or pulsed, using the built-in web pages. Relays can also be controlled by custom scripts running on a computer or dedicated controller, providing the flexibility to suit a wide range of remote control requirements.

WebRelay-Quad™ can be fully configured within minutes using a standard web browser, with no additional software required.


Quantity:


Models

WebRelay-Quad™ Industrial

Model: X-WR-4R3-I

WebRelay-Quad™ POE

Model: X-WR-4R3-E

Power Over Ethernet — connect to an 802.3af compliant network.

Model No.Relay OutputsContact RatingOpto-Inputs*Power Supply
X-WR-4R3-I 4 (SPDT) 1A @ 28V max 0 9-28V DC
X-WR-4R3-E 4 (SPDT) 1A @ 28V max 0 POE or 5V DC

*These devices are sold as components and do not include a power supply.

  • Built-in web server for setup and remote relay control from a web-browser
  • No special software or device drivers required
  • XML status and control page makes communications with custom software interfaces simple
  • Can operate as a Modbus/TCP slave device
  • Four independent, 28V 1A relays (SPDT)
  • “On/Off” and “Pulse” modes
  • Rugged, compact enclosure can be DIN-Rail or Wall mounted
  • Includes a 2-piece (14-pin) industrial terminal connector that makes connections
    convenient
  • “Power-Over-Ethernet” (802.3af) option available.
